Description

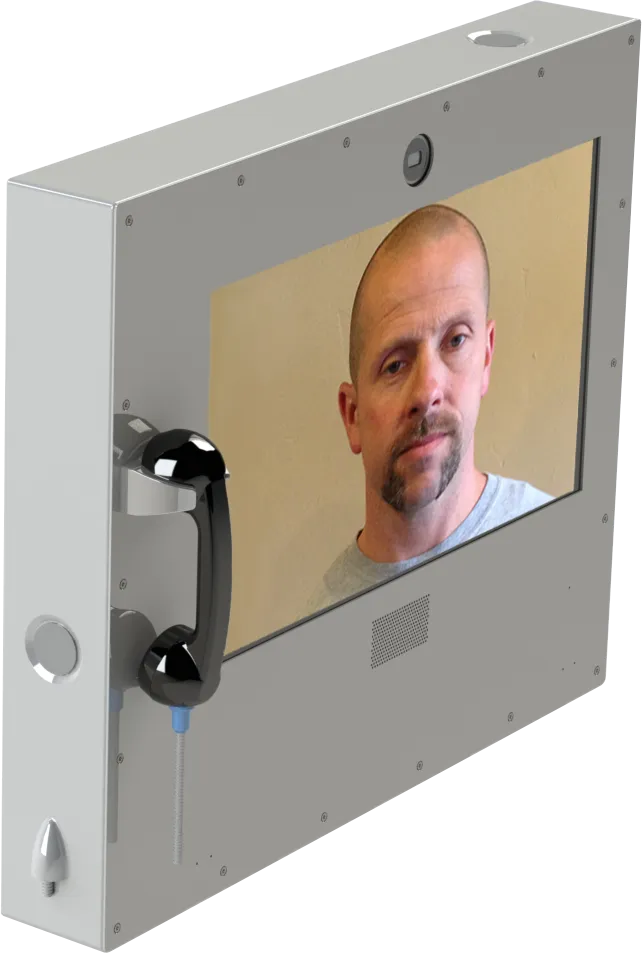

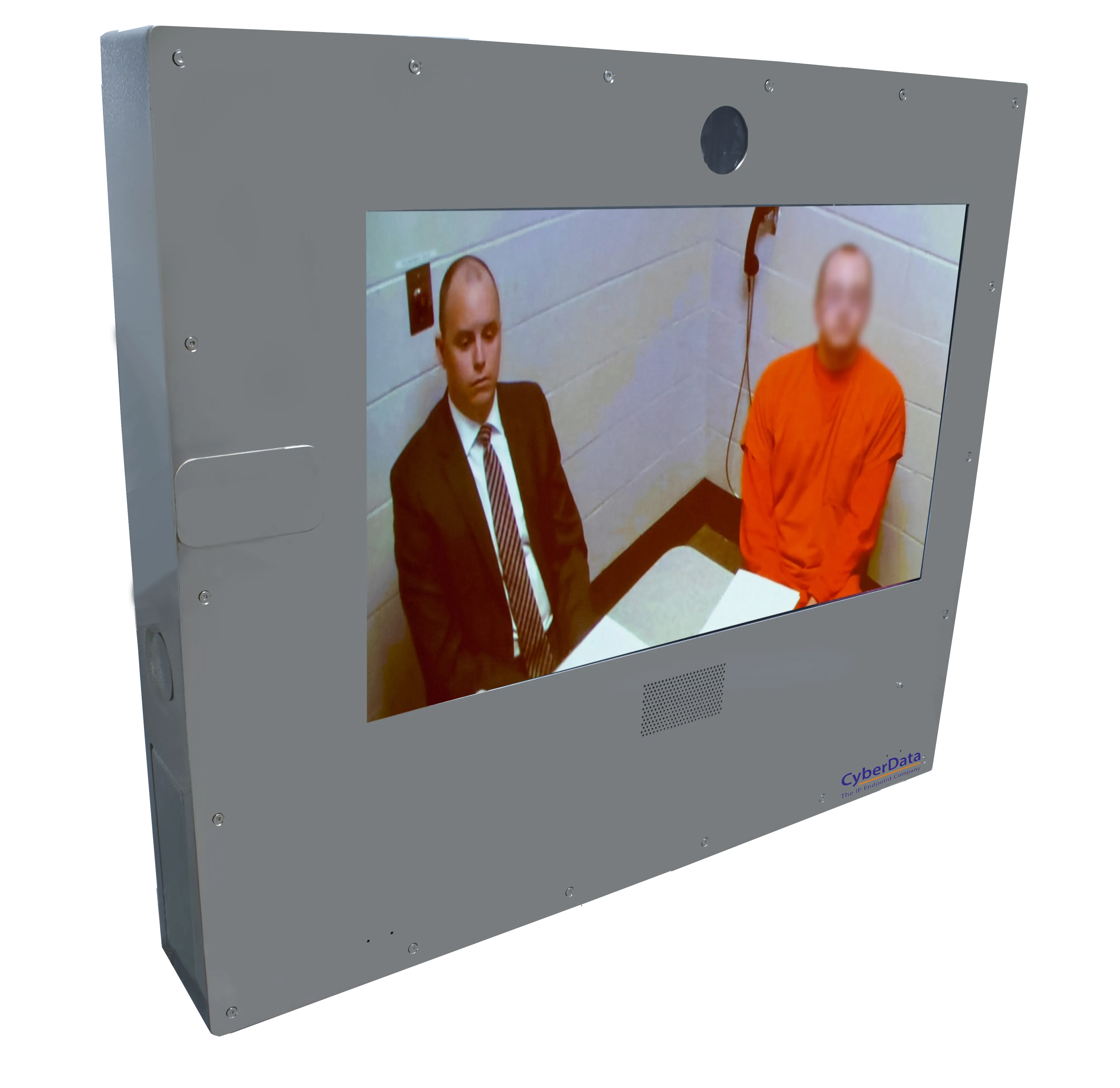

The Cisco DX80 Secure Case Kit takes a Cisco DX80 and protects it from damage. The Cisco DX80 is housed in a steel enclosure with security screws holding down the stainless steel front cover. The screen protector is replaceable Lexan. The Armored Cord Handset is designed for demanding environments.

Note: When this secure phone case is used, the touch screen capability of the DX phone is disabled.

Features

• Stainless Steel front cover
• Replaceable Lexan cover for phone display
• Powder coated Back Box
• Handset with 32-inch armored cable
• USB with Hookswitch Controller

Options

• 011507 Housing-DX80 Secure Phone-Hands Free available

Specs

Dimensions	Length: 27.559 inches [700 mm] Width: 4.016 inches [102 mm] Height: 22.953 inches [583 mm]
Weight	39 lbs. [17.69 kg]
RoHS Compliant	Yes
Warranty	2 Year Limited
Part Number	011416, Housing-Cisco DX80 Secure Phone-RoHS Compliant
Part Number	011507, Housing-DX80 Secure Phone-Hands Free available

Installation

Mounting

Assembly

Downloads

Documentation

Documentation
Description	Date
	DATE:5/26/22
	DATE:7/31/20
Firmware, Drivers & Utilities
